FS34 Fiber Optic Connectors

Circular Connectors

VIEW DATASHEET

Amphenol Fiber Systems International (AFSI) designs and manufactures a complete line of circular fiber optic connectors designed in accordance with M28876 connectors.

These connectors are precision machined to stringent tolerances and designed to provide superior optical performance in extreme environmental conditions. FS34 offers rugged military and industrial multichannel fiber optic connectors for deployable, shipboard, outdoor and fixed system requirements.
The backshell features the Quickloc™ captivation system developed by Amphenol Fiber Systems International. Not only is it simple to install, it is also easy to remove the aramid yarn of the cable (KEVLAR®) captivation and recapture without cutting back the cable. The Quickloc™ backshell also allows easy access to maintain or reconfigure termini without altering the captivated aramid fiber.

Features & Benefits:

  • Precision machined in accordance with M28876 connectors
  • Available in 3 shell sizes:
    13 (4 ch), 15 (6, 8 ch), 23 (18, 31 ch)
  • Six keying options (plus universal keying for COTS product) for both plugs and receptacles; ideal for test cables
  • Inserts are interchangeable from plug to receptacle. Either can be operated with pins or socket termini
  • Operates with all qualified single mode or multimode M29504/14 and /15 termini
  • Complete line of straight, 45° and 90° backshells.
  • Fully intermateable and interchangeable with any qualified FS34 connector manufacturer
  • Backshell design allows simplified, removable KEVLAR® captivation with no mechanical crimp rings
  • Angled backshells operate identically using the same tools as the straight backshell
  • Quickloc™ design enables faster maintenance or repair without complete disassembly of connector backshell assembly
  • Versions of this connector family are available in aluminum and alternate materials and platings.

Applications:

• U.S. Navy shipboard, surface craft and submarines
• Mission critical combat and communications systems
• Mobile tactical shelters electronic battlefield networks
• Mobile Emergency Telecommunications (MET) Stations
• Deployable outdoors in harsh environments

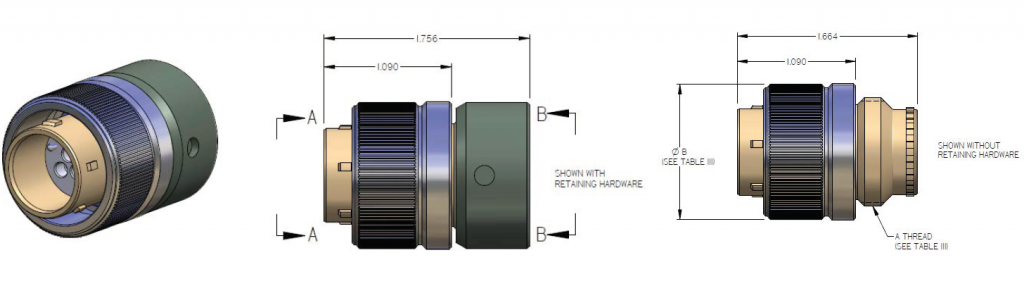

FS34 Plug

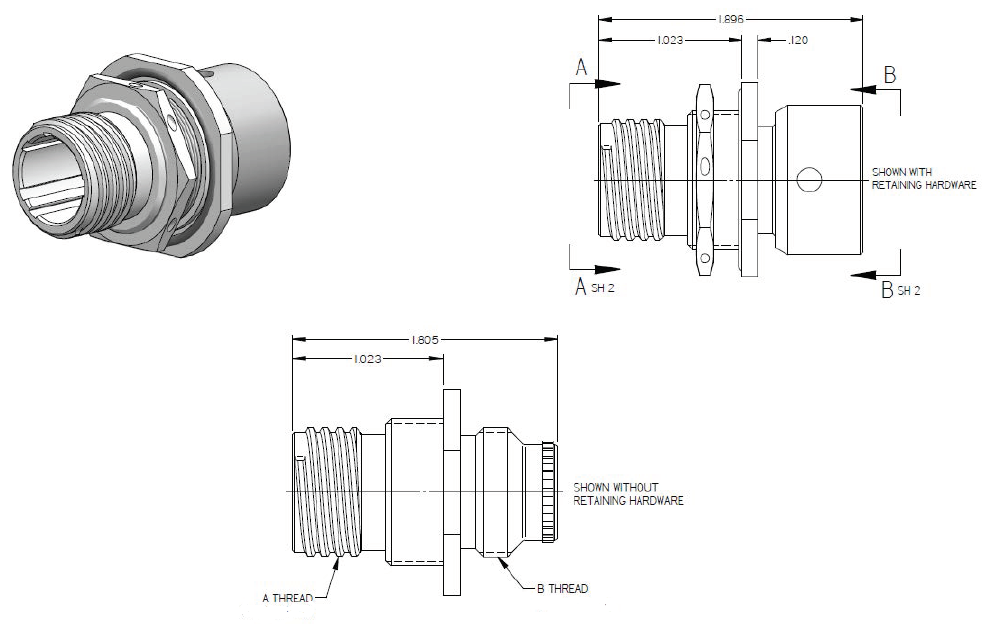

FS34 Jam Nut Receptacle

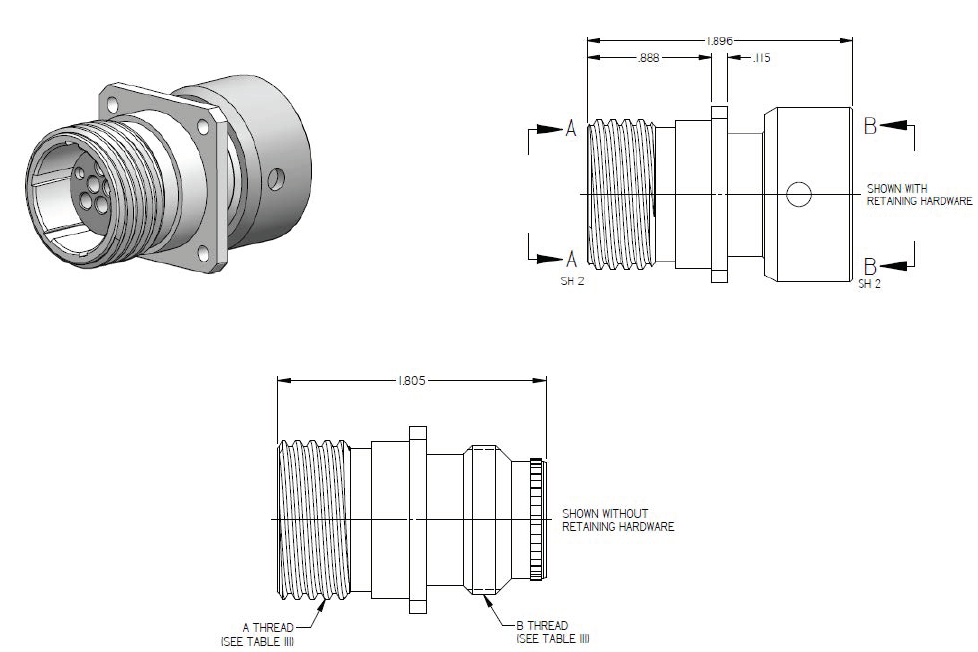

FS34 Wall Mount Receptacle

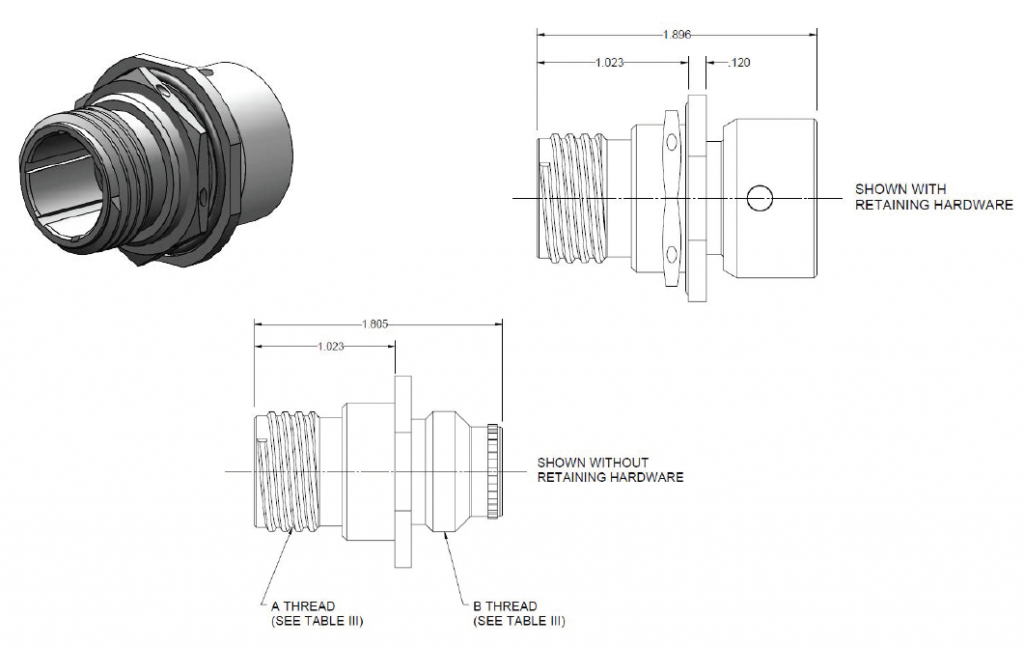

FS34 Hybrid Receptacle
