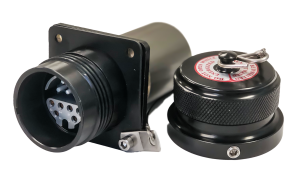

Star-Line EX®

Industrial Hazardous Environment Connector

View Datasheet

The Star-Line EX® is a hybrid connector certified for use in a Zone 1-IIc hazardous environment. A heavy duty environmentally sealed connector, these connectors have proven to provide exceptional performance in the most complex ground support cable network, automatic and process control systems and instrumentation systems.


Features & Benefits

  • Rated for use up to 1000V AC/DC
  • Large coupling sleeve, secured with captive set screws
  • Double lead threaded coupling system
  • Strong machined aluminum construction
  • From 1 to 143 contact positions
  • Vast family of reversible inserts for power, signal and mixed applications
  • Corrosion resistant plating rated for 300 days salt spray exposure
  • Extensive array of hardware & strain relief options
  • EX cable gland options available to accept most cable styles

Star-Line EX Certifications

  • ATEX Certificate #03ATEX1101X
  • IECEx SIR 10.0064X
  • CE IP 68-8 rated
  • Cenelec certified EEXd IIC-T6, flame and dust-proof
  • ATEX/IECEx Rated to EExd, and EExde, T6 Gas & Dust ratings
  • Rated for use up to 1000V AC/DC
  • GOST R Certified #POCC MX.A II 96.B00012
