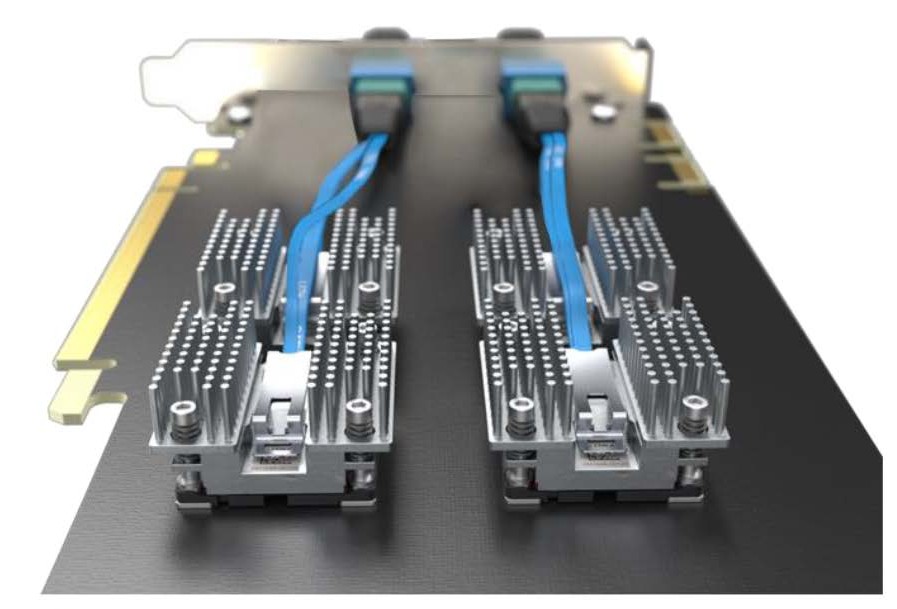

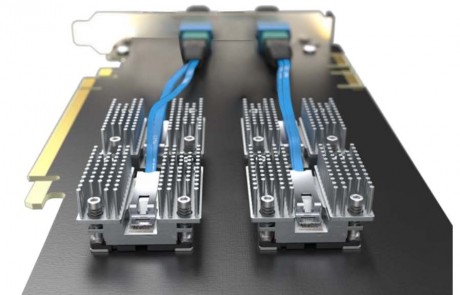

LEAP® On Board Transceiver

Features:

  • 300 Gbp/s Capable
  • Dimensions: 1″ x 1″
  • From 1 to 12 full duplex configurations
  • Solves Faceplate Density and I/O Challenges
  • Array Radar and 5K video applications
  • 100m reach

Benefits:

  • 300Gb/s Optical Module

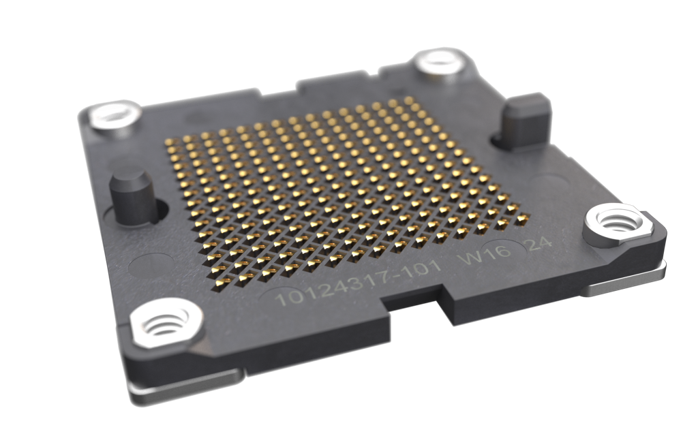

  • 225 Electrical Connector
  • Customizable Duplex to 24 Channel MT Optical Cables
  • Solves Faceplate Density and I/O Challenges
  • Faceplate adapters

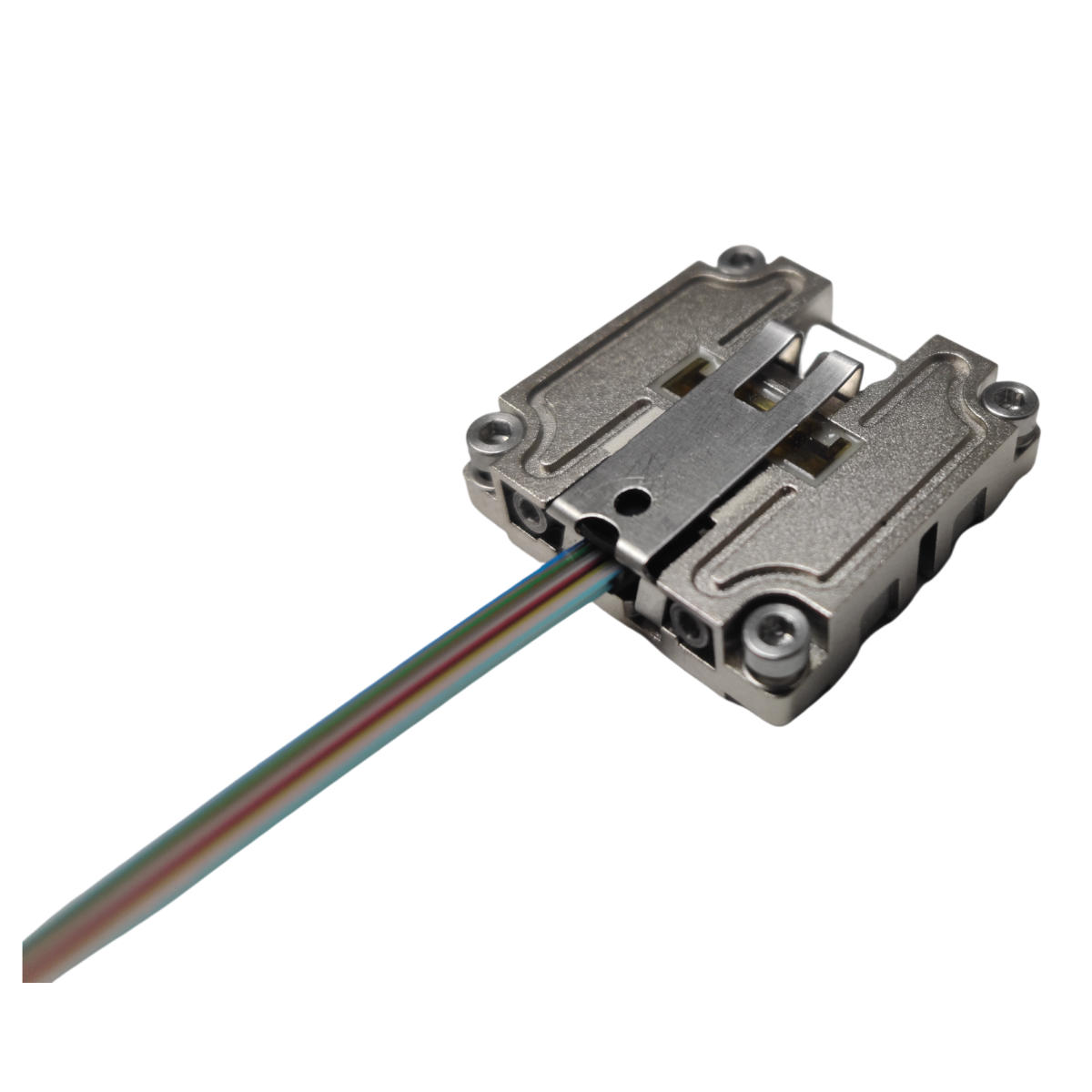

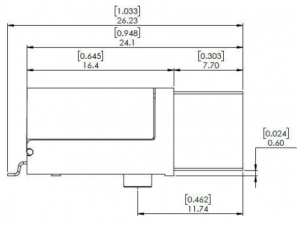

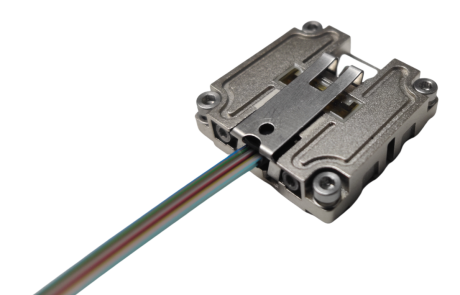

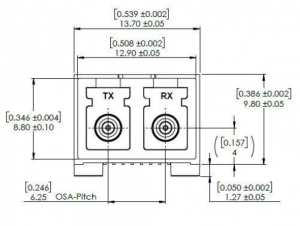

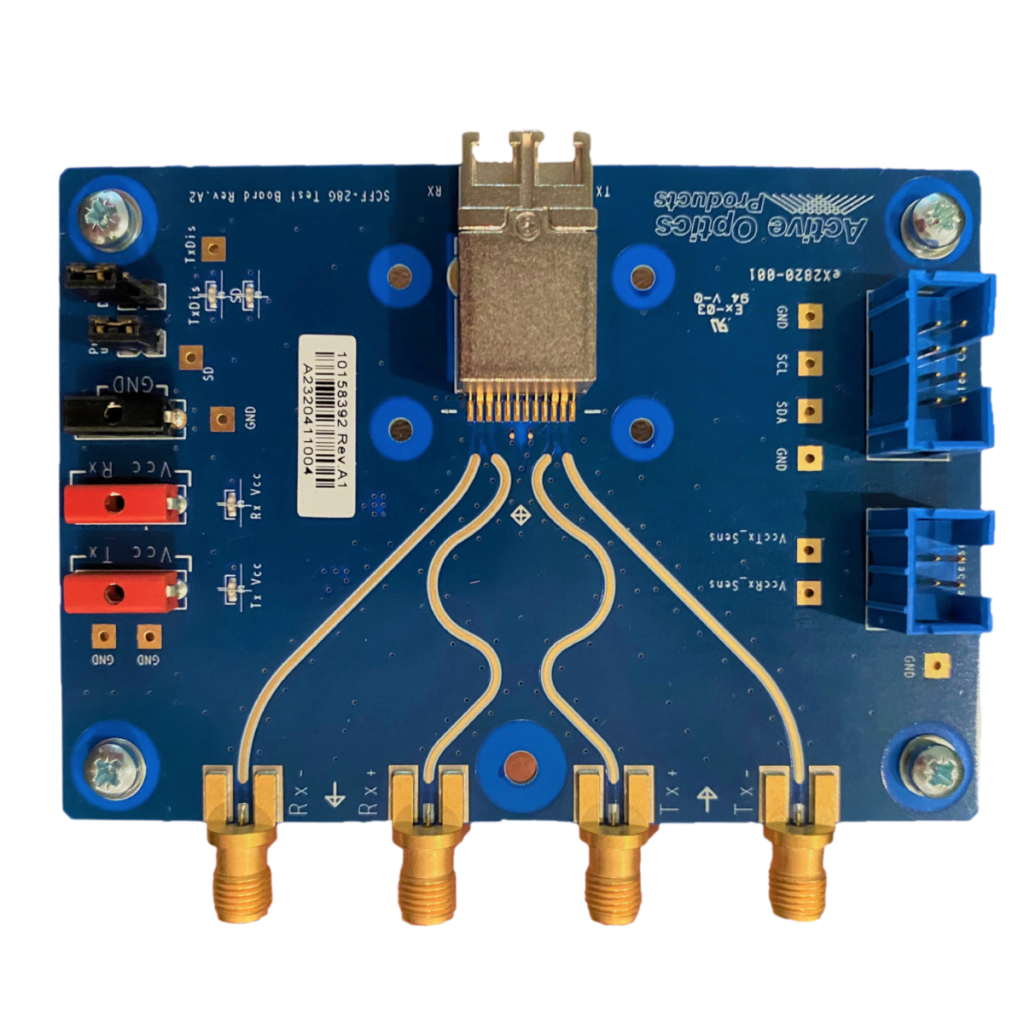

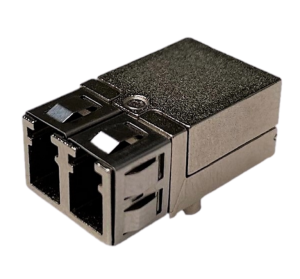

Rugged SCFF Optical Transceiver

(1TRx/25Gbps)

Features:

  • Case Operating Temp: -40°C to +85°C
  • Small Cubic Form Factor (SCFF)
  • Conformal Coating Option
  • Data rate transparent from 1.25Gbps to 28.05Gbps*
  • Shock MIL STD 883: Method 2002.4 (500g;1ms)
  • Duplex LC and ARINC801 versions
  • SFF-8472 compliant two-wire control and diagnostic interface
  • Enhanced Bit Error Rate (1e-12) requires no or limited FEC
  • Programmable input equalization
  • Programmable output amplitude and de-emphasis
  • Clock and Data Recovery*

Benefits:

  • Uses 2x less board space than SFP+ Form Factor
  • Supports standard and non-standard protocols in this range of data rates
  • Ideal for applications requiring safe optical connection
  • Allows for transceiver optimization and monitoring connection discovery, channel diagnostics, and signal status monitoring
  • Lower system latency and better system performance
  • 16dB of signal peaking at 14GHz to compensate for suboptimal signal condition*
  • Compensate for PCB traces loss for proper signal conditioning
  • Guaranteed performance over full data rate range
