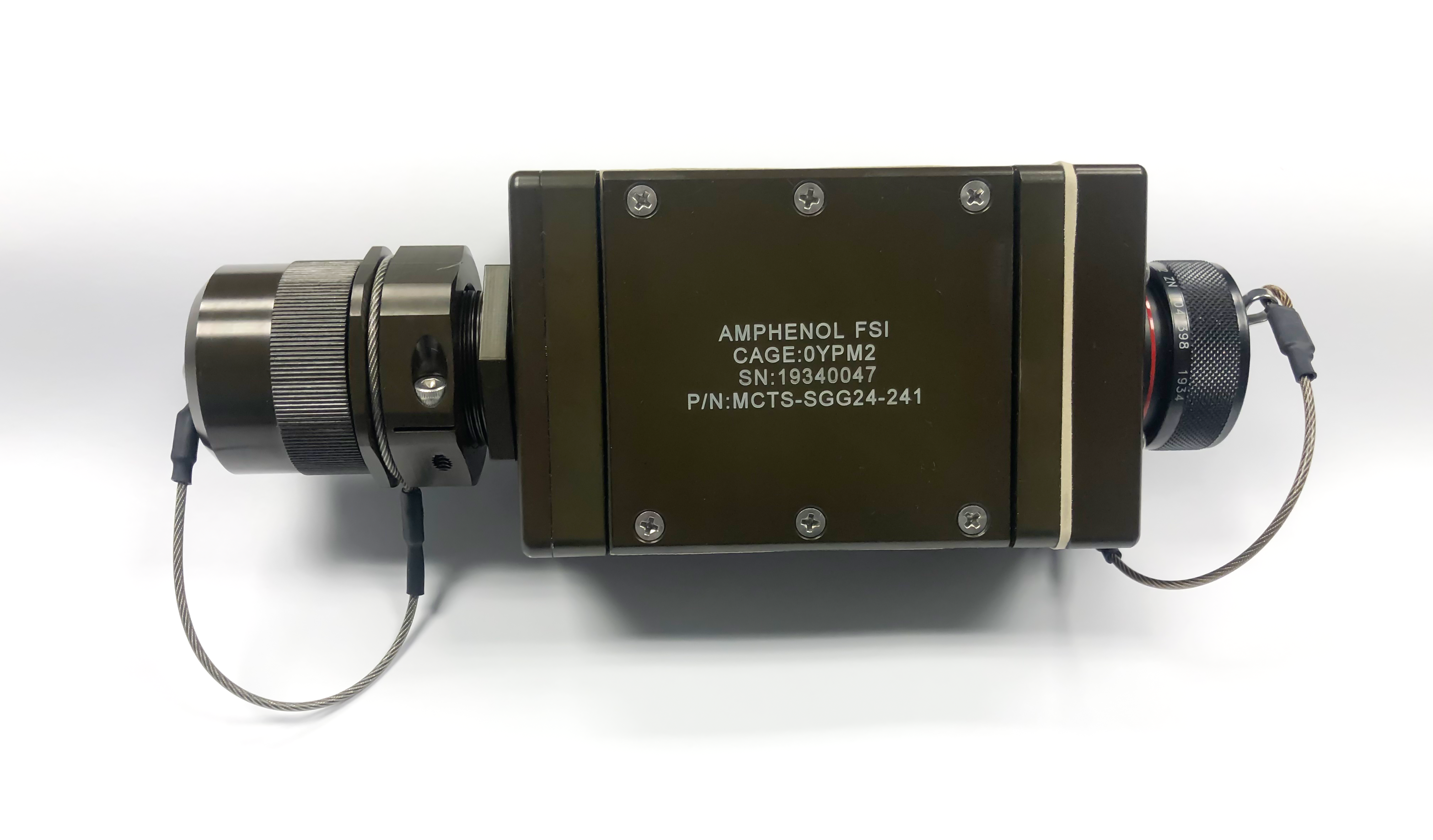

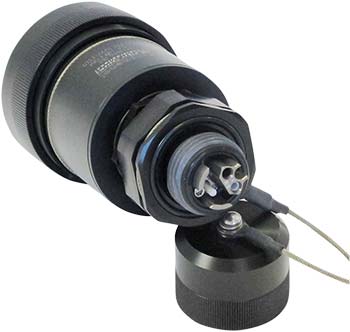

ARCH Series TFOCA-II® Ruggedized Media Converter

Actives

VIEW DATASHEET

Amphenol Fiber Systems international (AFSI) offers the ARCH Series TFOCA-II® Ruggedized Media Converter to provide optical-electrical (O-E) and electrical-optical (E-O) conversion for harsh environments. This stand-alone unit features ruggedized optical transceivers integrated into a compact housing with 10/100/1000 Ethernet electrical interfaces (additional electrical interfaces available-consult factory) and AFSI’s TFOCA-II® connector.

The “plug and play” unit allows systems engineers to effortlessly convert their systems to take advantage of the benefits of fiber optics without the need to design and develop harsh environment fiber optic transceivers and associated electronics. Also, the ARCH TFOCA-II® Ruggedized Media Converter’s compact size significantly reduces the footprint devoted to O-E and E-O conversion using discrete components. The standard TFOCA-II® Ruggedized Media Converter supports conversion for 10/100/1000 (auto adaptable) Ethernet providing up to 1.0Gb/s transport over 10 miles using single mode fiber. The unit incorporates AFSI’s TFOCA-II® field-proven connector (US Army standard fiber optic connector) with hundreds of thousands of units deployed. The rugged four-channel TFOCA-II® is hermaphroditic, allowing the user to easily concatenate cable assemblies in the field to meet the required length.

Features

  • Effortlessly converts systems to fiber optics (longer distances, EMI/RFI immunity, lighter weight) without major system design/redesign
  • Compact size significantly reduces O-E/E-O conversion compared to traditional discrete designs
  • Harsh environment transceivers support extended temperature range and military vibration/shock requirements
  • Supports single mode or multimode operation
  • Supports single or dual auto-adaptable 10/100/1000 Ethernet O-E/E-O conversion
  • Compliant with IEEE 802.3
  • Field-proven TFOCA-II® connector

Applications

  • Military command shelters and platforms
  • Communication systems
  • Satellite communications
  • Fiber optic infrastructures
  • Ruggedized LAN systems
  • Vehicles
  • Radar

Specifications

Description

Measurement/Detail
Optical
Optical connector: TFOCA-II® channels: 2 (1 discrete pair of optical TX/RX) or 4 (2 discrete pairs of optical TX/RX) wavelength: 1310nm fiber type: single mode (9/12microns) or multimode (50/125 or 62.5/125) transmission distance (maximum): multimode 500 meters; single mode 10 kilometers optical transmission rate: 1.0Gbps optical budget multimode (typical): TX -7.0dB, RX -17dB optical budget single mode (typical): TX 0dB, RX -30dB
Electrical
Electrical connector: dual RJ-45 connectors or customer defined interface: dual discrete 10/100/1000Mbps ethernet channels conformance: IEEE 802.3 power: 115/230VAC universal plug adapter (+5VDC @ 1.5A) or customer defined
Environmental
Operating temperature: -40°C to 85°C storage temperature: -40°C to 85°C vibration: MIL 810 transport

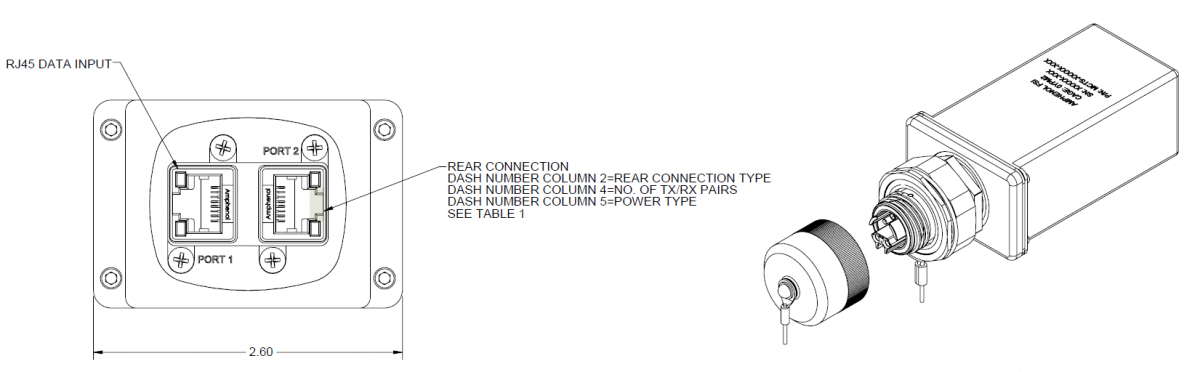

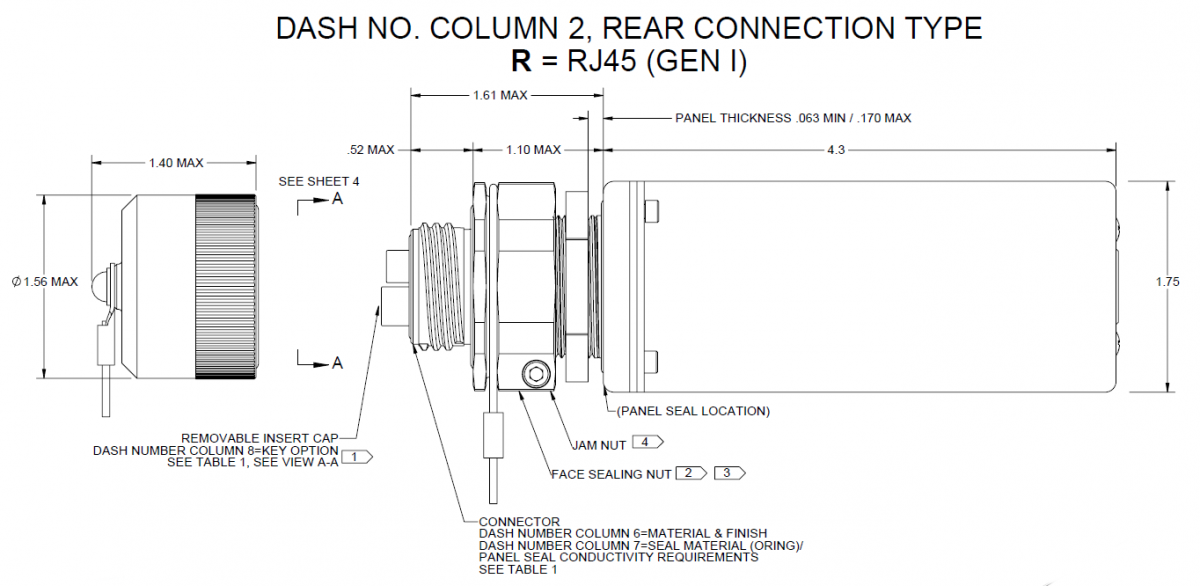

GEN I – 3D Drawing/Rendering

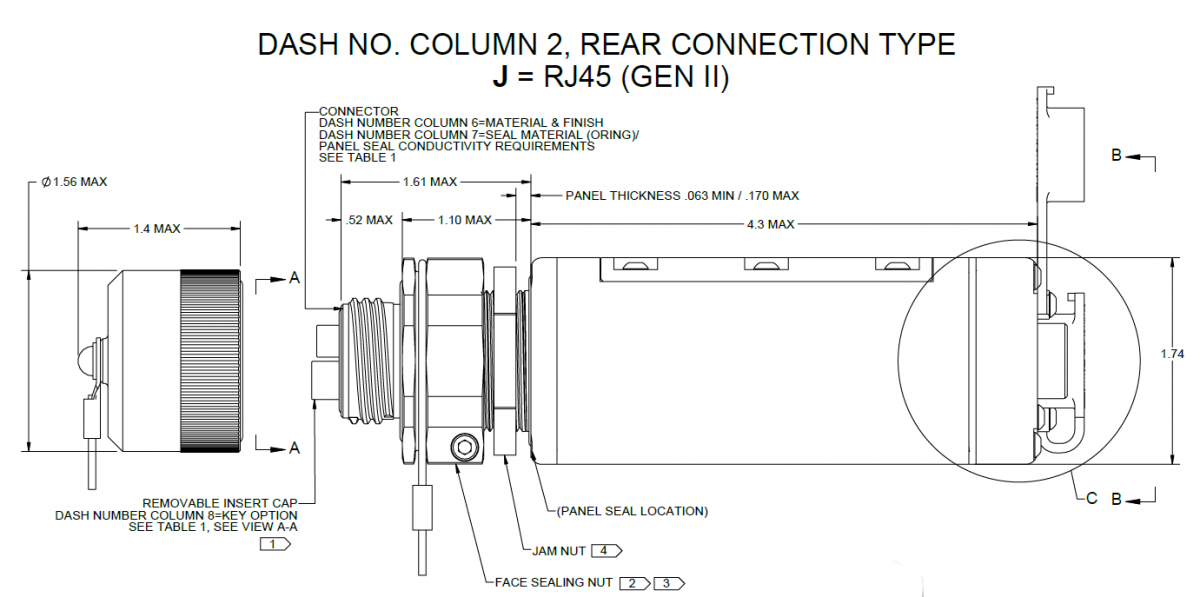

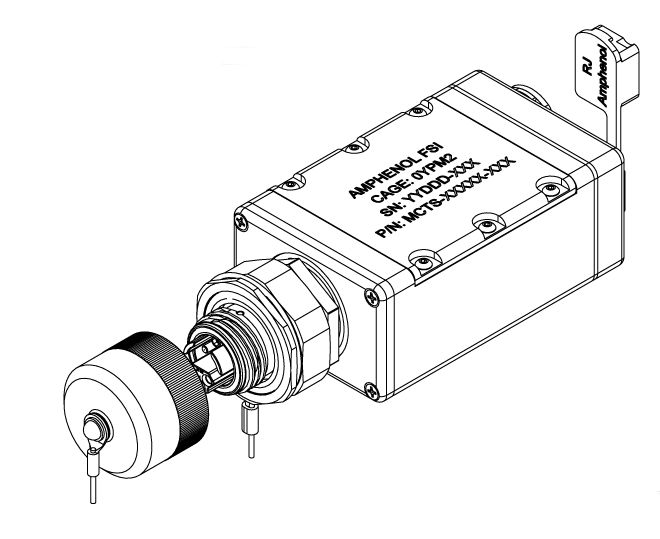

GEN II – 3D Drawing/Rendering

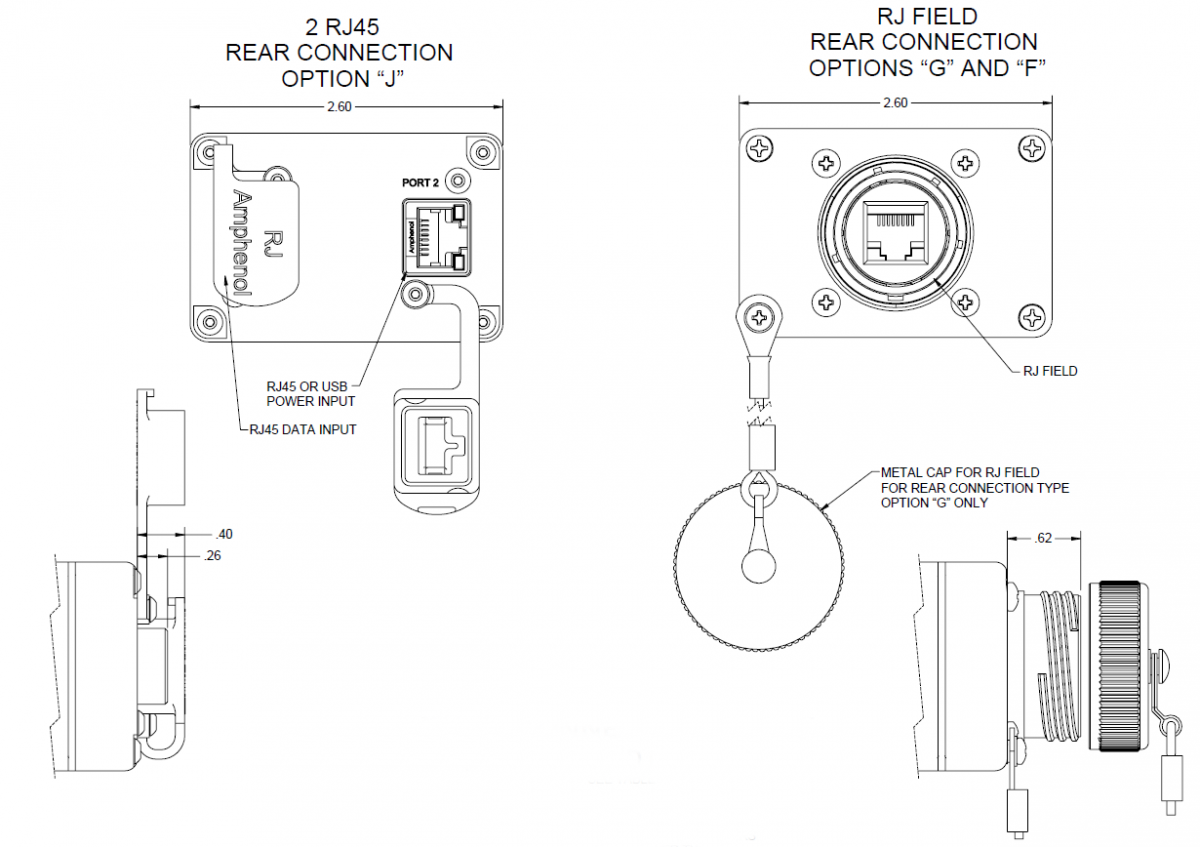

Rear Connection Panel – Drawing/Rendering

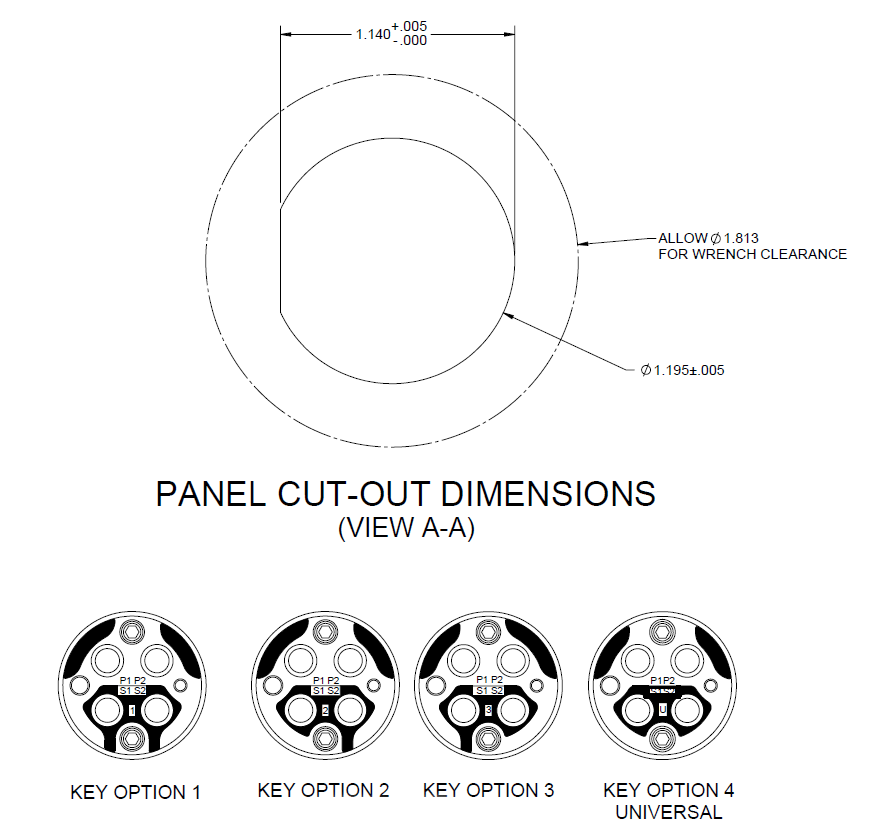

Panel Cutouts

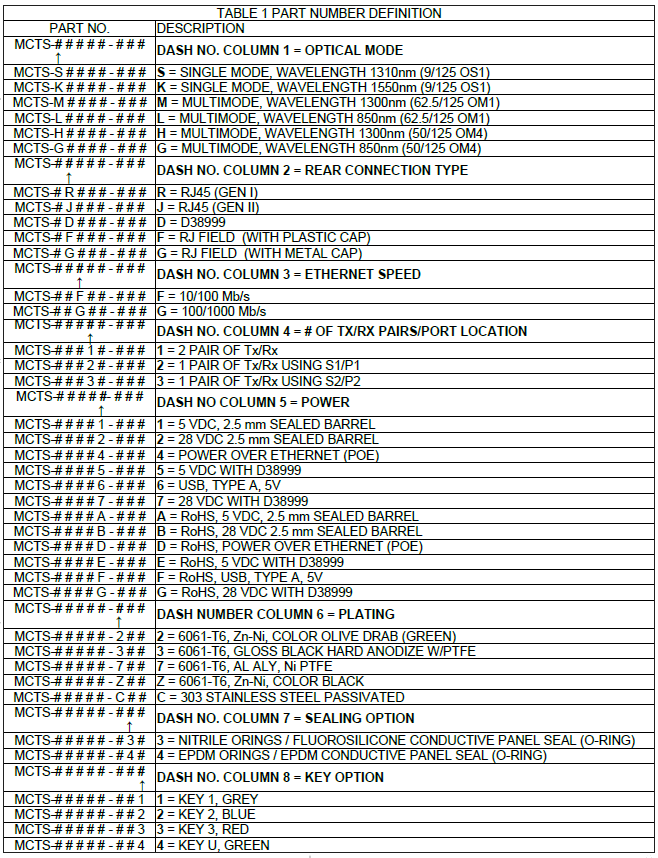

Part Number Scheme
