TFOCA-II® 12-Channel Fiber Optic Connectors
Physical Contact Connectors – Hermaphroditic Connectors

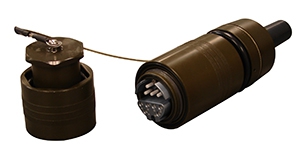

The TFOCA-II® 12-channel fiber optic connector, designed and patented by Amphenol Fiber Systems International (AFSI), is ideal for environmentally harsh conditions. This design takes advantage of the latest in fiber optic connectivity technology by utilizing industry standard physical contact ceramic ferrules.
Although the TFOCA-II® connector is designed for minimal maintenance in the field, it can be fully field repaired reusing all components with the exception of the termini. Its removable end cap allows direct access to the alignment sleeve and termini.
* TFOCA-II® is a registered trademark of Amphenol Fiber Systems International. The TFOCA-II® is covered by US Patents 6,305,849; 6,371,660, and 6,357,929
Features
- Hermaphroditic design for versatility – enables multiple TFOCA-II® plug assemblies to be concatenated
- Removable end cap – allows for easy field maintenance and cleaning
- 12-channel connector design – six fold channel increase over TFOCA with better optical performance
- Improved cable retention strength – designed to meet 400 lb pull strength while protecting fibers from stress
- Zn-Ni plating – provides substantial longevity to corrosive environments
- Meets new mandate set by the Environmental Protection Agency for elimination of heavy metal plating
- Commercial ceramic ferrule technology – enables TFOCA-II® connector to provision multimode and single mode interconnect with a variety of polishes including SPC and UPC
- Solid core alignment sleeves – more robust than split alignment sleeves
- Hermaphroditic dust cap – plug and/or receptacle dust caps connect together to prevent dust and moisture penetration during deployment
- Optional key positions – four key positions (1,2,3, universal) available, enabling segregation of mated plug/receptacles or plug/plug, through mechanical interface
- Field repairable using existing parts – additional connector components (other than termini) are not required to perform field repair
- Also available in stainless steel and brass, allowing the connector to be used in a variety of applications
Applications
- US Army, Navy, and Marine Corps military tactical deployments
- Oil, gas and geoscience industries
- Mining
- Industrial
- Broadcast
Specifications
| Description | Measurement/Detail |
| Insertion Loss (Multimode) | Typical – 0.30dB, maximum – .075dB |
| Insertion Loss (Single Mode) | Typical – 0.70dB, maximum – 0.75dB |
| Back Reflection (Single Mode-UPC Polish) | Typical – -50dB, maximum – -40dB |
| Operating Temperature | -46° C to + 71° C |
| Storage Temperature | -55° C to + 85° C |
| Mud | 5 minute immersion, clean with water (per MIL-C-83526/12 /13 requirements) |
| Water Pressure | MIL-STD-810, Method 512.4, 1m, 48 hr |
| Ice Crush | DOD-STD-1678, Method 4050 |
| Humidity | DOD-STD-1678, Method 4030, 10 Cycles |
| Flammability | MIL-STD-1344, Method 1012 |
| Vibration (Operational) | MIL-STD-1344, Method 2500.1 |
| Shock | EIA/TIA-455-14, Condition A |
| Mating Durability | 2,000 cycles per EIA/TIA-455-21 |
| Cable Seal Flexing | 100 cycles per MIL-STD-1344, Method 2017, Procedure 1 |
| Twist | 1,000 cycles per EIA/TIA-455-36 |
| Cable Retention | 400 lb minimum per EIA/TIA-455-6, 1hr (applies to plug and strain relief receptacles) |
| Impact | EIA/TIA-455-2 |
| Crush Resistance | 450 lb minimum per EIA/TIA-455-26 |
| EMI Shielding Effectiveness (Receptacle Only) | > 60dB, 15KHz to 10GHz |
